您當前的位置： 首頁 » 產品&解決方案 » KSP4-04-04F-BSP,KSP4-04-04M-NPT,KSP4-06F-UNF78,KSP4-12-16M-BSP,平面型快速接頭 KSP4-04-04F-BSP,KSP4-04-04M-NPT,KSP4-06F-UNF78,KSP4-12-16M-BSP,平面型快速接頭
 點擊圖片查看原圖 |
|
| 產品： |
瀏覽次數：1387KSP4-04-04F-BSP,KSP4-04-04M-NPT,KSP4-06F-UNF78,KSP4-12-16M-BSP,平面型快速接頭 |
| 型號： |
KSP4-04-04F-BSP,KSP4-04-04M-NPT,KSP4-06F-UNF78,KSP4-12-16M-BSP |
| 單價： |
面議 |
| 最小起訂量： |
|
| 供貨總量： |
|
| 發貨期限： |
自買家付款之日起 3 天內發貨 |
| 有效期至： |
長期有效 |
| 最后更新： |
2015-07-01 11:28 |
| |
詢價 |
|
KSP4-04-04F-BSP,KSP4-04-04M-NPT,KSP4-06F-UNF78,KSP4-12-16M-BSP,平面型快速接頭
主要特征
符合 ISO16028 標準
無滴漏：防沙塵污染，防碰撞變形，單手操作，連接力小，帶安全自鎖，連接時可防空氣進入液壓系統中。
技術特點
材料：鋼質或不銹鋼，用于主要零件。
表面：鍍鋅處理
套筒：連接套筒和陽接頭（用優質碳鋼制成），陽接頭經過淬火處理，具有對液壓和機械沖擊引起的最大抵抗力。
鋼球鎖定：耐用的鋼球鎖定機構，每次保證可靠連接。鋼球數量多，使工作載荷分布均恒。
錐閥：陽接頭與陽接頭連接時，保證全開狀態，斷開時完全密封。
密封圈：NBR主料，PTFE輔料構成的O型密封圈，溫度囊括-20℃到100℃
FKM主料，PTFE輔料構成的O型密封圈，溫度可高達200℃
如有其它要求，可協商
產品說明
KSP4 規格 - 平面型
材質：碳鋼，表面鍍環保鋅
密封件：以NBR為標準
擋圈：鐵氟龍
工作溫度：在標準NBR范圍內，承受-25℃ + 125℃的溫度。

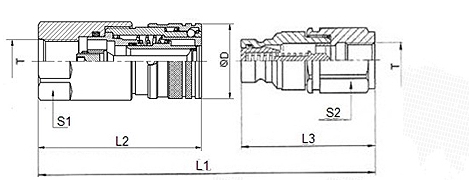

| 昌林液壓 |
國際標準 |
L1 |
L2 |
L3 |
D |
S1 |
S2 |
T |
母接頭編號 |
公接頭編號 |
| 04 |
6.3 |
100.0 |
58.5 |
53.3 |
28.0 |
22.0 |
22.0 |
1/4"BSP |
KSP4-04-04F-BSP |
KSP4-04-04M-BSP |
| |
|
|
|
|
|
|
|
1/4"NPT |
KSP4-04-04F-NPT |
KSP4-04-04M-NPT |
| |
|
|
|
|
|
|
|
3/8"BSP |
KSP4-04-06F-BSP |
KSP4-04-06M-BSP |
| |
|
|
|
|
|
|
|
3/8"NPT |
KSP4-04-06F-NPT |
KSP4-04-06M-NPT |
| |
|
|
|
|
|
|
|
9/16 UNF |
KSP4-04F-UNF916 |
KSP4-04M-UNF916 |
| |
|
|
|
|
|
|
|
M16*1.5 |
KSP4-04F-M1615 |
KSP4-04M-M1615 |
| |
|
|
|
|
|
|
|
M18*1.5 |
KSP4-04F-M1815 |
KSP4-04M-M1815 |
| 06 |
10 |
121.0 |
73.5 |
61.2 |
32.0 |
30.0 |
30.0 |
3/8"BSP |
KSP4-06-06F-BSP |
KSP4-06-06M-BSP |
| |
|
|
|
|
|
|
|
3/8"NPT |
KSP4-06-06F-NPT |
KSP4-06-06M-NPT |
| |
|
|
|
|
|
|
|
1/2"BSP |
KSP4-06-08F-BSP |
KSP4-06-08M-BSP |
| |
|
|
|
|
|
|
|
1/2"NPT |
KSP4-06-08F-NPT |
KSP4-06-08M-NPT |
| |
|
|
|
|
|
|
|
9/16 UNF |
KSP4-06F-UNF916 |
KSP4-06M-UNF916 |
| |
|
|
|
|
|
|
|
M16*1.5 |
KSP4-06F-M1615 |
KSP4-06M-M1615 |
| |
|
|
|
|
|
|
|
M18*1.5 |
KSP4-06F-M1815 |
KSP4-06M-M1815 |
| |
|
|
|
|
|
|
|
3/4 UNF |
KSP4-06F-UNF34 |
KSP4-06M-UNF34 |
| |
|
|
|
|
|
|
|
M22*1.5 |
KSP4-06F-M2215 |
KSP4-06M-M2215 |
| |
|
|
|
|
|
|
|
7/8 UNF |
KSP4-06F-UNF78 |
KSP4-06M-UNF78 |
| 08 |
12.5 |
143.5 |
73.4 |
74.0 |
38.0 |
36.0 |
36.0 |
1/2"BSP |
KSP4-08-08F-BSP |
KSP4-08-08M-BSP |
| |
|
|
|
|
|
|
|
1/2"NPT |
KSP4-08-08F-NPT |
KSP4-08-08M-NPT |
| |
|
|
|
|
|
|
|
3/4"UNF |
KSP4-08F-UNF34 |
KSP4-08M-UNF34 |
| |
|
|
|
|
|
|
|
3/4"BSP |
KSP4-08-12F-BSP |
KSP4-08-12M-BSP |
| |
|
|
|
|
|
|
|
3/4"NPT |
KSP4-08-12F-NPT |
KSP4-08-12M-NPT |
| |
|
|
|
|
|
|
|
M22*1.5 |
KSP4-08F-M2215 |
KSP4-08M-M2215 |
| |
|
|
|
|
|
|
|
7/8"UNF |
KSP4-08F-UNF78 |
KSP4-08M-UNF78 |
| |
|
|
|
|
|
|
|
M26*1.5 |
KSP4-08F-M2615 |
KSP4-08M-M2615 |
| |
|
|
|
|
|
|
|
1-1/16"UNF |
KSP4-08F-UNF1116 |
KSP4-08M-UNF1116 |
| 10 |
16.0 |
143.0 |
86.0 |
74.0 |
42.0 |
36.0 |
36.0 |
1/2"BSP |
KSP4-10-08F-BSP |
KSP4-10-08M-BSP |
| |
|
|
|
|
|
|
|
1/2"NPT |
KSP4-10-08F-NPT |
KSP4-10-08M-NPT |
| |
|
|
|
|
|
|
|
3/4"UNF |
KSP4-10F-UNF34 |
KSP4-10M-UNF34 |
| |
|
|
|
|
|
|
|
3/4"BSP |
KSP4-10-12F-BSP |
KSP4-10-12M-BSP |
| |
|
|
|
|
|
|
|
3/4"NPT |
KSP4-10-12F-NPT |
KSP4-10-12M-NPT |
| |
|
|
|
|
|
|
|
M22*1.5 |
KSP4-10F-M2215 |
KSP4-10M-M2215 |
| |
|
|
|
|
|
|
|
7/8"UNF |
KSP4-10F-UNF78 |
KSP4-10M-UNF78 |
| |
|
|
|
|
|
|
|
M26*1.5 |
KSP4-10F-M2615 |
KSP4-10M-M2615 |
| |
|
|
|
|
|
|
|
1-1/16"UNF |
KSP4-10F-UNF1116 |
KSP4-10M-UNF1116 |
| 12 |
20 |
154.0 |
95.0 |
87.0 |
48.0 |
41.0 |
41.0 |
3/4"BSP |
KSP4-12-12F-BSP |
KSP4-12-12M-BSP |
| |
|
|
|
|
|
|
|
3/4"NPT |
KSP4-12-12F-NPT |
KSP4-12-12M-NPT |
| |
|
160.0 |
95.0 |
87.0 |
|
|
|
1"BSP |
KSP4-12-16F-BSP |
KSP4-12-16M-BSP |
| |
|
|
|
|
|
|
|
1"NPT |
KSP4-12-16F-NPT |
KSP4-12-16M-NPT |
| |
|
160.0 |
95.0 |
87.0 |
|
|
|
1-1/16"UNF |
KSP4-12F-UNF1116 |
KSP4-12M-UNF1116 |
| |
|
|
|
|
|
|
|
1-5/16"UNF |
KSP4-12F-UNF1516 |
KSP4-12M-UNF1516 |
| 16 |
25 |
177.0 |
109.5 |
92.0 |
55.0 |
50.0 |
50.0 |
1"BSP |
KSP4-16-16F-BSP |
KSP4-16-16M-BSP |
| |
|
|
|
|
|
|
|
1"NPT |
KSP4-16-16F-NPT |
KSP4-16-16M-NPT |
| |
|
|
|
|
|
|
|
1-1/4"BSP |
KSP4-16-20F-BSP |
KSP4-16-20M-BSP |
| |
|
|
|
|
|
|
|
1-1/4"NPT |
KSP4-16-20F-NPT |
KSP4-16-20M-NPT |
KSP1 技術參數
| 公稱通徑 |
最大工作壓力 |
額定流量 |
最小爆破壓力 |
泄漏量 |
| 公接頭 |
母接頭 |
連接 |
| LPH |
ISO |
(bar) |
(l/m) |
(bar) |
(bar) |
(bar) |
(cc) |
| 04 |
6.3 |
400 |
12 |
1900 |
1900 |
1900 |
0.008 |
| 06 |
10 |
350 |
23 |
1560 |
1780 |
1600 |
0.010 |
| 08 |
12.5 |
350 |
45 |
1700 |
1590 |
1770 |
0.012 |
| 10 |
16.0 |
350 |
74 |
1660 |
1420 |
1580 |
0.015 |
| 12 |
20 |
350 |
100 |
1600 |
1470 |
1840 |
0.020 |
| 16 |
25 |
350 |
189 |
1470 |
1400 |
1530 |
0.030 |
保護帽和保護塞
| 昌林液壓 |
國際標準 |
母接頭保護塞 |
公接頭保護帽 |
顏色 |
材質 |
| 04 |
6.3 |
KSP-04F-PVC |
KSP-04M-PVC |
紅色 |
塑料+橡膠 |
| 06 |
10 |
KSP-06F-PVC |
KSP-06M-PVC |
紅色 |
塑料+橡膠 |
| 08 |
12.5 |
KSP-08F-PVC |
KSP-08M-PVC |
紅色 |
塑料+橡膠 |
| 12 |
20 |
KSP-12F-PVC |
KSP-12M-PVC |
紅色 |
塑料+橡膠 |
| 16 |
25 |
KSP-16F-PVC |
KSP-16M-PVC |
紅色 |
塑料+橡膠 |
